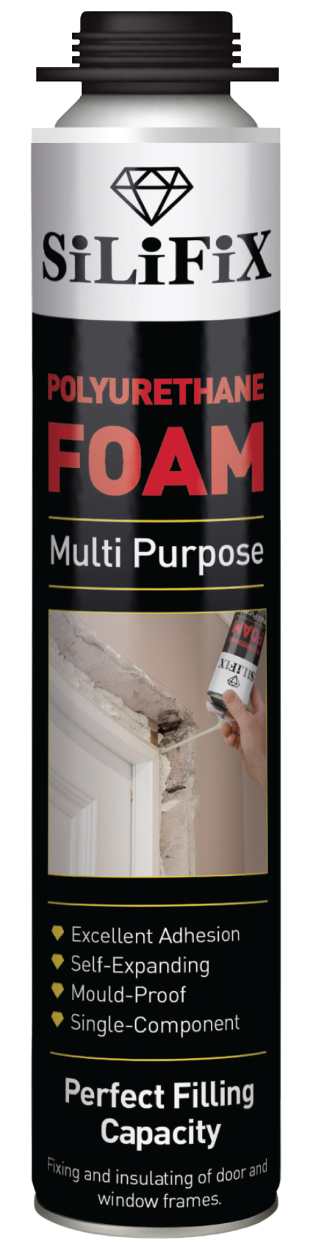

305G PU GUN FOAM (MULTI PURPOSE)
- Description
- Application Areas
- Features
- Technical Properties
- Package
- tds
Description
One-component Pu foam used with an applicator gun and features higher yield, easier application and reusability. It does not contain any propellant gases wich are harmful to the ozone layer.
- Excellent Adhesion & Filling Capacity
- Gun Use, Low Expansion, Professional Type
- Mould-Prof, Water-Proof & Over Paintable
- Fixing and insulation of door and window frames.
- Fiiling and sealing of gaps, joints and cavities.
- Fiiling of penetrations in walls.
- Insulating electrical outlets and water pipes.
Excellent adhesion & filling capacity and high thermal & acoustical insulation value. Economical consumption thanks to precise application. High yield up to 45 liters depending on temperature and humidity. Comforms to fire class B3 according to DIN4102-1. Mould-proof, water-proof and over paintable.
| PROPERTIES | ||
|---|---|---|
| Basis | Polyurethane Prepolymer | |
| Curing System | Moisture cure | |
| Specific Gravity | 22±3 Kg/m3 | (ASTM D1622) |
| Tack-Free Time (1 cm width) | 7±3 min | (ASTM C1620) |
| Cutting Time (1cm width) | 30-45 min | (ASTM C1620) |
| Cure-Time | 24 hours | |
| Foam Color | Light yellow | |
| Yield | 30-45 L | (ASTM C1536) |
| Fire Class of the Cured Foam | B3 | (DIN 4102-1) |
| Thermal Conductivity | 0,036 W/m.k (at 20°C) | (DIN 52612) |
| Compression Strength | 0,03 MPa | (DIN 53421) |
| Tensile strength | 11.7±0.8 | (SO1926-79) |
| Dimensional stability | ±10% | (ISO2796/86) |
| Water penetration | 0 | (ISO2896-87) |
| Water Absorption | max. 1 vol% | (DIN 53428) |
| Can Temperature | min.5°C max. +30°C | |
| Temperature Resistance | -40°C to +80°C | |
| Application Temperature | -2°C to +30°C |
| Type | Volume | Box |
|---|---|---|
| Summer +5 | Gw. 850 gr | 12 |
| Summer +5 | Gw. 570 gr | 12 |
| Summer +5 | Gw. 350 gr | 12 |
