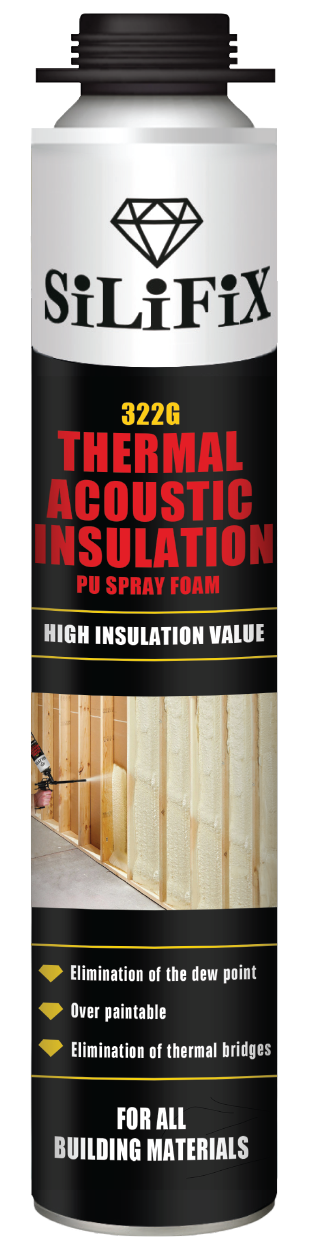

322G Thermal & Acoustic Insulation Pu Foam
Provides a unique, monolithic thermal insulation application without junctures, seams and gaps.
- Description
- Application Areas
- Features
- TECHNICAL PROPERTIES
- PACKAGE
- TDS
Description
322G Thermal & Acoustic Insulation Pu Spray Foam is a top quality heat and sound insulation foam at buildings and houses. Provides a unique, monolithic thermal insulation application without junctures, seams and gaps. An innovative alternative to traditional building insulation methods such as polystyrene heat insulation boards, glass wool and rock wool. Single-component product used with an applicator gun. It does not contain any propellant gases which are harmful to the ozone layer.
- Roofs, attics, facades, foundations, basements, floors, interior walls, inter-floor overlapping, interior partitions, ceilings and cellars,
- Structural elements of buildings, balcony, loggia, doors, window slopes, pipes, canals and tank kind round surfaces, uneven and rough all surfaces,
- Car body and car trailers, boats, yachts, vessels and all kind of sea vehicles.
- Excellent adhesion to all kind of building materials,
- Can be applied easily to uneven, hard to reach surfaces where it is not possible to use traditional insulation materials,
- Elimination of thermal bridges,
- Elimination of the dew point,
- Yield up to 3m² with 1.5cm thickness for one layer if applied from a distance of ~40cm with normal application speed,
- No need to use mechanical fastening elements after use,
- Over paintable
| TECHNICAL DATA | ||
|---|---|---|
| FOAM | METHOD/CONDITIONS | VALUE |
| Basis | Polyurethane Prepolymer | |
| Curing Mechanism | Moisture cure | |
| Full Cure Time | 24 hours | |
| Foam Color | Yellowish | |
| Yield | 3 m2 for 1,5 cm thickness |
|
| Thermal Conductivity | DIN 52612 – TM 1020 : 2016* | 0,025 W/m.K |
| Compression Strength | DIN 53421 – TM 1011 : 2013* | 0,03 MPa |
| Dimensional Stability | ISO2796/86 – TM 1004 : 2013* | ±10% |
| Acoustic Insulation | EN ISO 717-1 | 50db at 1600hz |
| Tack-Free Time | ASTM C1620 – TM 1014 : 2013* | 5±2 min |
| Cutting time | ASTM C1620 – TM 1005 : 2013* | ≤40 min |
| Can/Applicator Temperature | Optimal 20°C | Between +5°C and +30°C |
| Temperature Resistance | Cured Foam | Between -75°C and +115°C |
| Application Temperature | Ambient and surface | Between +5°C and +30°C |
| Type | Volume | Box |
|---|---|---|
| - | 850ml/Gw.930gr | 12 |
