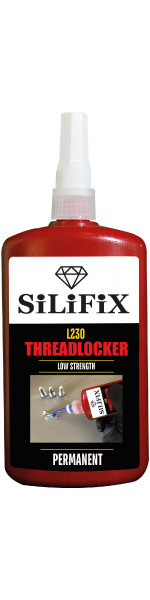

L230 Threadlocker (Low Strength)

Description

L230 Threadlocker (Low Strength) is a low-strength, easy to remove screw lock. Works on all metals, especially good on low strength metals which could damage during disassembly, e.g. brass or aluminium.

  • Clean male and female threads before assembly with an absorbent tissue paper to remove any cutting oil.
  • Apply the adhesive with a 360 turn to leading threads of the male and female fittings.
  • Use an absorbent tissue paper to wipe off excess jointing compound in the direction of the thread.
  • Assembly parts and hold on for 24 hours at 22-24°C to ensure full curing of jointing compound.
  • For disassembly, use hand tools to remove mating parts. When it is hard to dissemble at room temperature, apply local heat until reaching 250°C and disassemble while hot. Then, remove any residual cured adhesive mechanically and clean parts with a proper solvent, acetone.
  • Ideal for low-strength thread-locking of adjusting screws.
  • Easy to remove screw lock.
  • Especially good on low strength metals which could damage during disassembly, e.g. brass or aluminium.
TECHNICAL PROPERTIES

General properties
Main constituentMethacrylate ester
Appearance (uncured)Liquid
ColourPurple
ViscosityMedium and
thixotropic
StrengthLow
Physical properties of uncured adhesive

Specific gravity
Conditions: 22°C
1.01
Flash point
Method: ASTM D56-05
>93°C
Temperature range-50°C to 150°C
CorrosivityNon-corrosive
Gap fillingUp to 0.25mm
Viscosity Conditions: 22°C
Method: ISO 2555
Apparatus: Brookfield RVT,
spindle 3
4000 - 7000 cPs
(@2.5 rpm)
Typical curing performance of adhesive
SpecimensM10x25 bolt and
proper nut
Conditions22°C
Handling time
Material of
specimen
Duration
Brass<60 secs
Steel5 to 7 mins
Stainless steel6 to 8 mins
Zinc plated steel5 to 10 mins
Aluminium20 to 35 mins
TypeVolume Box
Threadlocker50 ml120
Threadlocker250 ml36
